Feather Angled Flag

Description

Feather Angled Flags tower over the competition—take advertising to new heights with these full color skyscrapers. With several base options they can be displayed indoors and outdoors.

Our mesh flag polyester is direct printed and then sublimated. This creates “Print thru” for single sided flags; full color and vibrant on the front – muted and mirrored but legible when viewed from the back.

• Single sided Print Thru flag graphic with black nylon pole sleeve to the left of the print when viewed from the front
• Double Sided separate flag graphics are sewn back to back with a silver block out layer in between

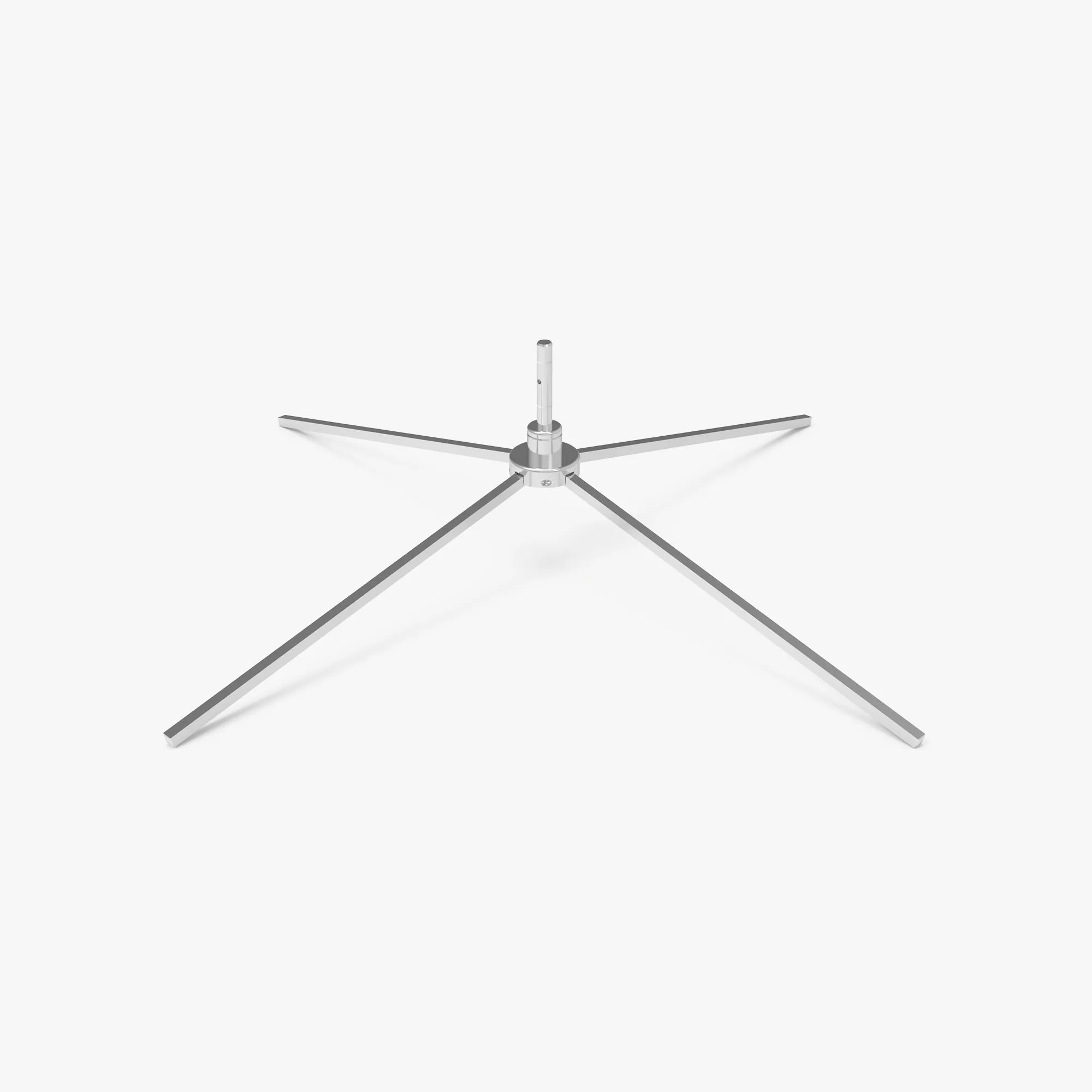

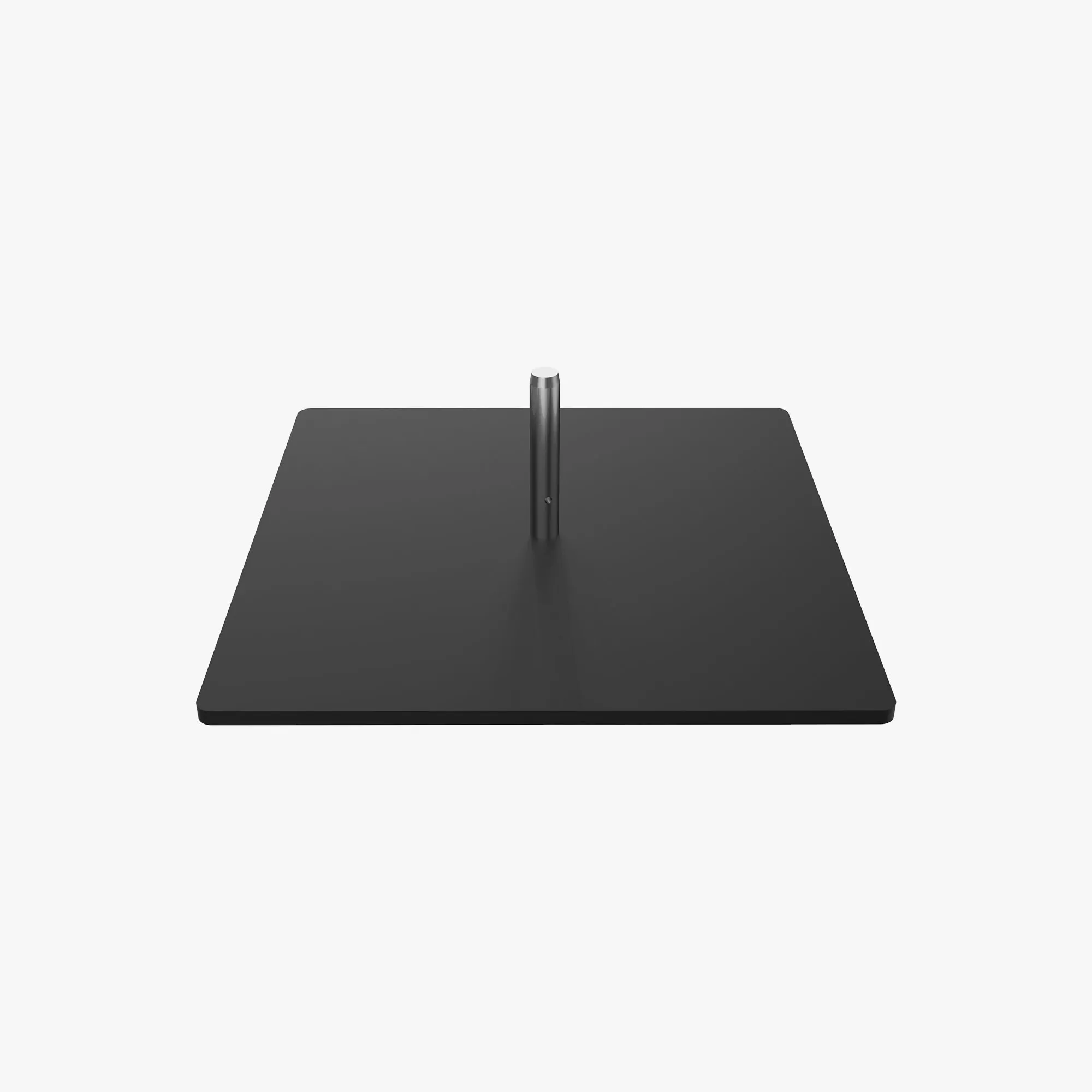

The standard ground stake can be used to install in soft ground, while the cross base or square base are heavy duty for hard surface staging. The optional carry bag is great for when you plan to travel with or store your flag.

Applications
Suitable for both indoor and outdoor settings, ideal for storefronts, tradeshows, outdoor events, and festivals.

Spec

Size & Specifications

Material & Print Specifications
Print Method: Dye Sublimated
Graphic Material: 4 oz Polyester mesh flag
Washable: Yes

Additional Accessories

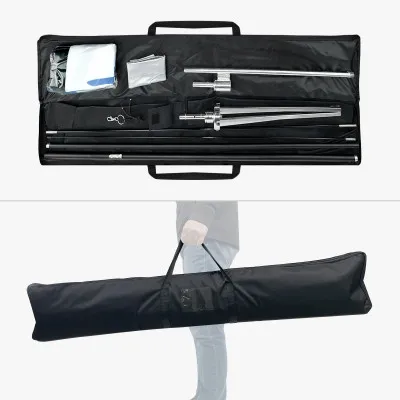

Carry Bag (Optional): Nylon / Zippered

• S/M = 1.41 lbs
• L/XL = 1.63 lbs

Hardware & Assembly
Pole Set: Aluminum and graphite pole set, Tool Free Interlocking poles

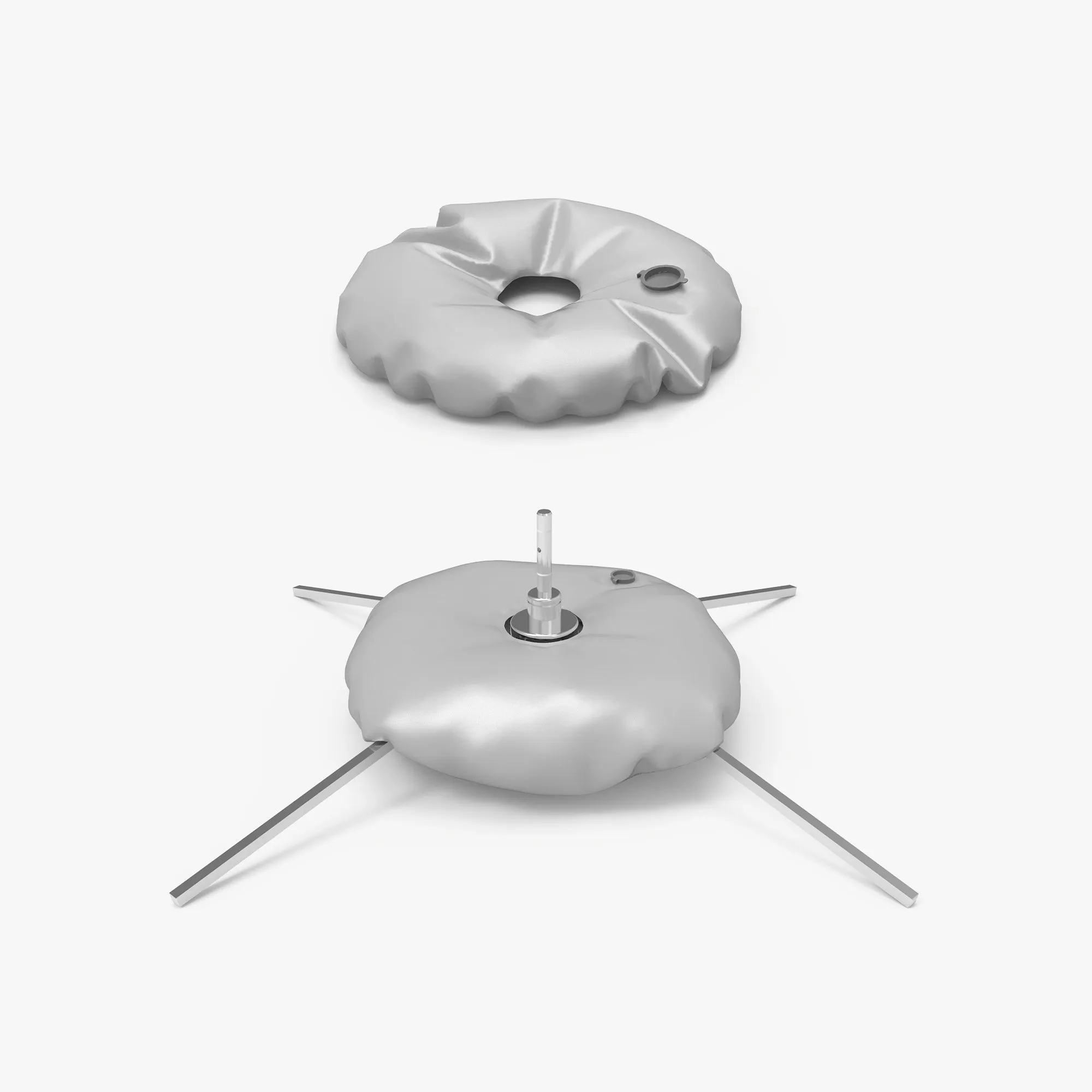

Base Hardware Specifications

File Setup

• Accepted File Formats: JPEG or PDF (single page only)
• Color Space: CMYK
• Resolution: 150dpi for raster images (More than enough for large format)
• Max File Upload Size: 300MB
• Submit artwork built to ordered size – Scaled artwork is automatically detected and fit to order
• Do not include crop marks or bleeds
• Double sided products will be uploaded as two separate files unless otherwise specified in the artwork template

Additional Tips

• Do not submit with Pantones/Spot Colors – Convert to CMYK
• Convert live fonts to outlines
• Use provided design templates when available

Template Download (Template User Guide)

Size	PDF	Photoshop
X-Large	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided
Large	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided
Medium	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided
Small	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided	Single Sided Print Thru Single Sided Print Thru Reverse Double Sided

• Do not adjust artboard size
• Do not reposition guidelines
• Design on layer labelled “Artwork”
• Delete mask/guide layers when instructed by template

---

Installation Guide

Installation Guide

Step 1

Position the pole set.

Step 2

Connect the poles.

Step 3

Slide flag onto the pole.

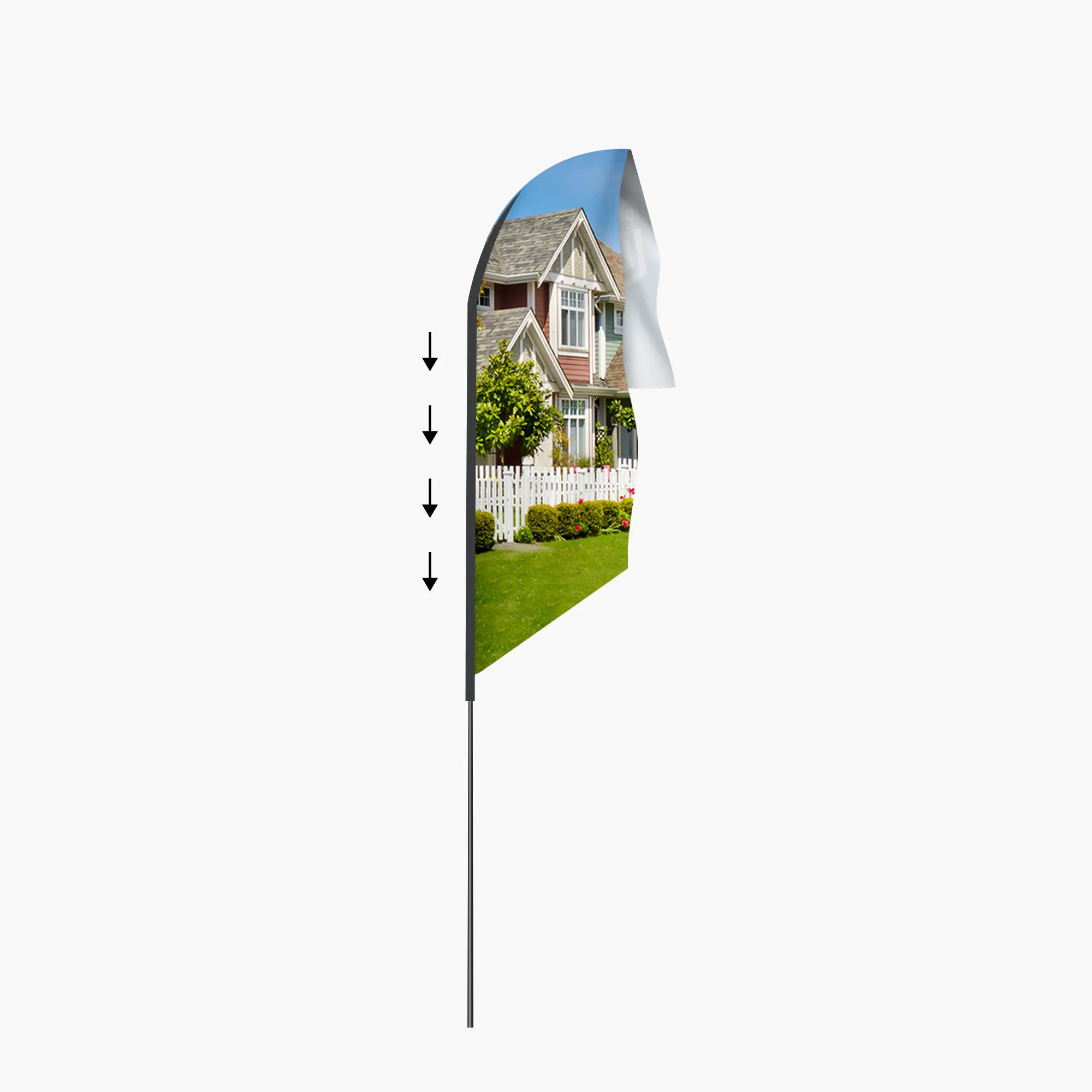

Step 4

Secure flag down the pole.

*Tip

If the flag appears wrinkled or loose after setup, please ensure the elastic cord at the bottom is pulled tight. A firm tension will help the flag stay smooth and properly displayed.
